Zmodell ZM-TDB-01DE - Train departure board, Germany, Era V-VI

Train departure board

Germany, Era V-VI

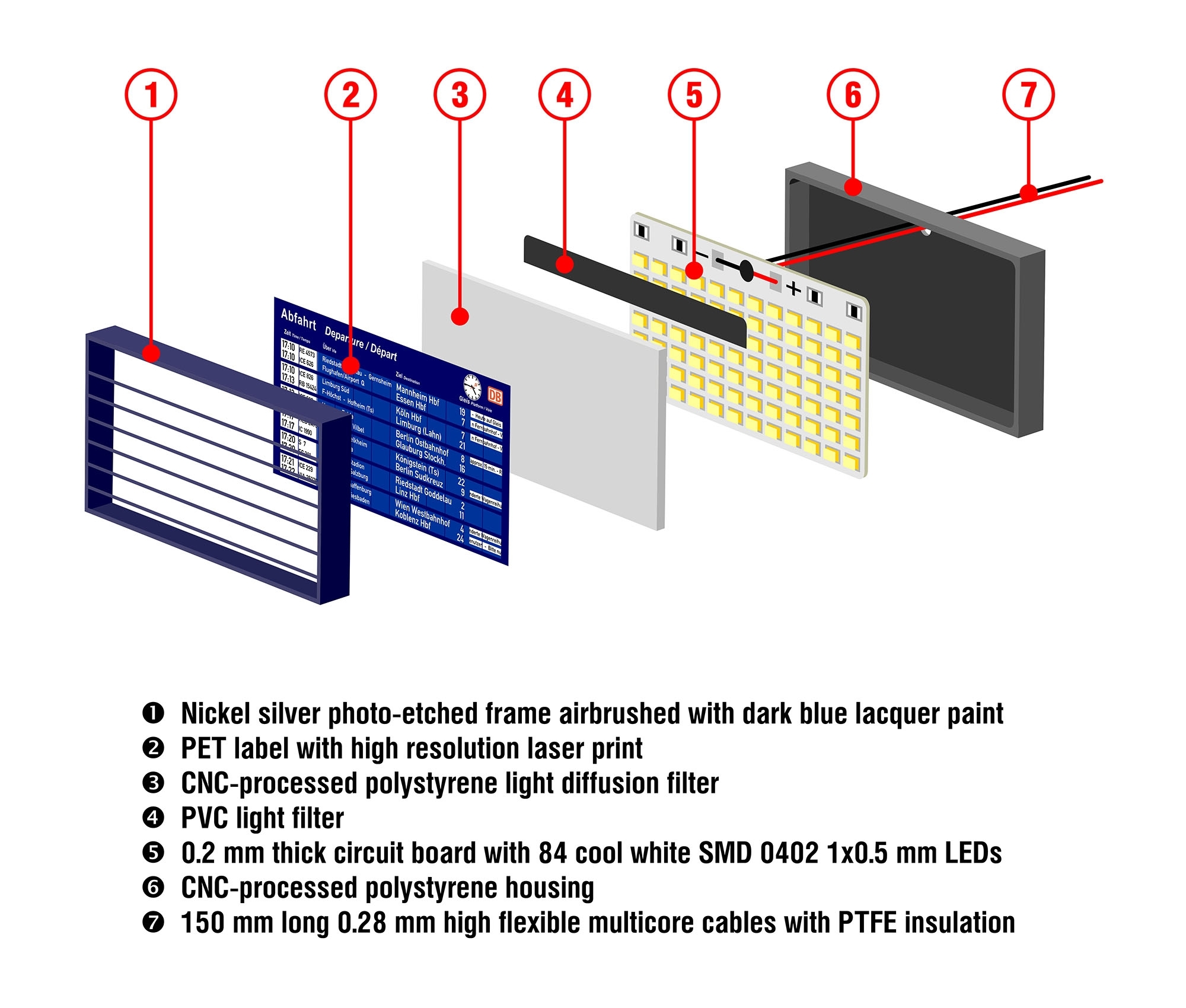

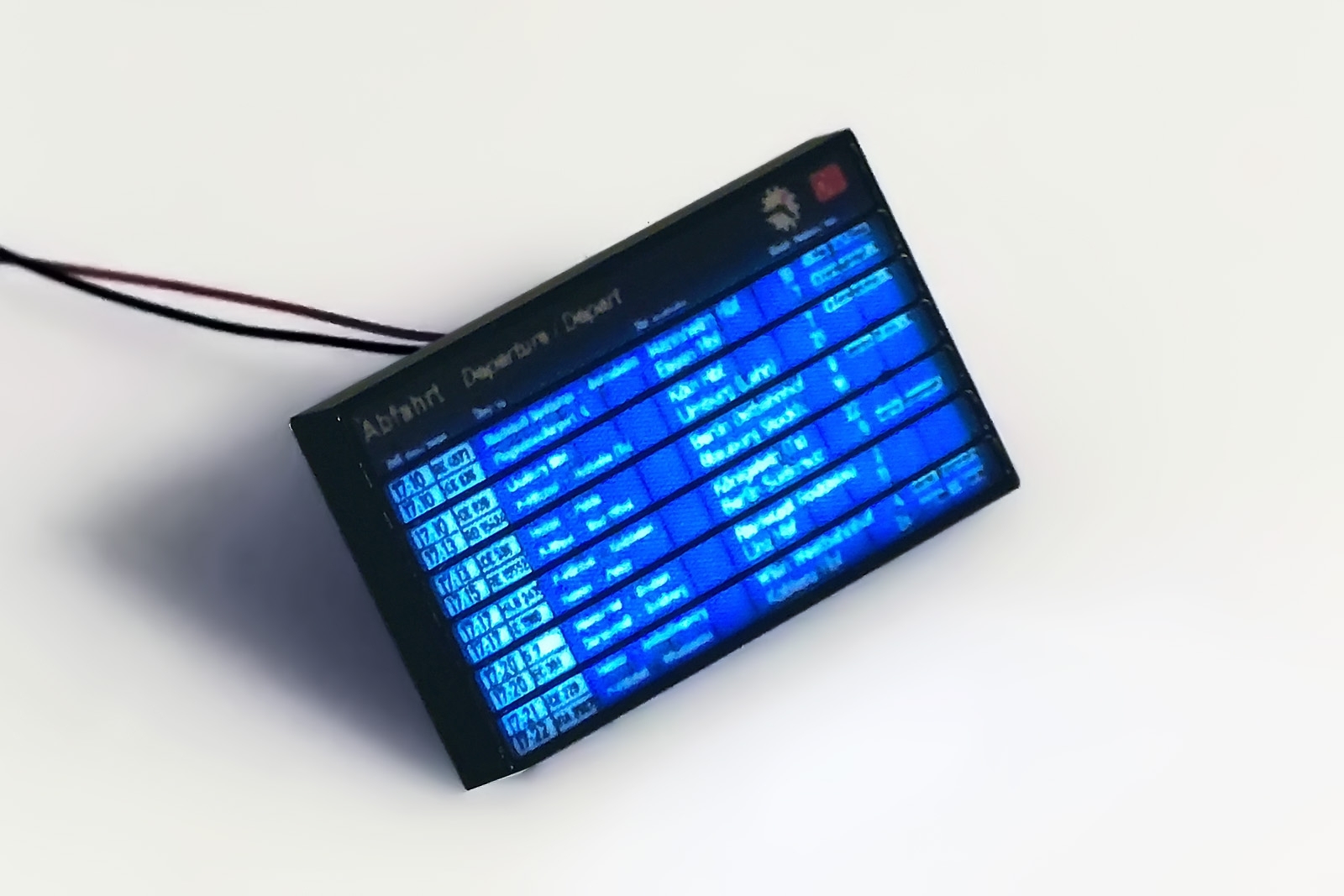

Finely detailed model of the train departure board is made of precisely CNC-processed polystyrene parts and outer photo-etched metal frame airbrushed with lacquer paint. The backlight consists of the matrix of 84 LEDs for uniform illumination.

Quantity: 1 piece

Scale: Z scale 1:220

Size: 21.5 x 11.5 x 2 mm (Width x Height x Thickness)

Country: Germany

Era: V-VI

Power: 8-15V DC (12V DC recommended)

Power consumption: 3 mA @ 12V DC

Cable length: 150 mm

Suitable for: Z scale 1:220 buildings, layouts and dioramas

The train departure board should be powered with 8-15 volts DC. 12 V DC is recommended. Please connect the board to the accessories output of the power supply. Please do not connect the device to the track output (analog or digital).

Installation:In case of mounting the train departure board on the wall of the building:

1. Drill the hole in the wall of the building with 0.7 - 1.0 mm drill bit.

2. Pick up with sharp tweezers the double-sided adhesive sticker that comes in the package, attach it to the back side of the train departure board and remove the outer protective layer from the sticker

3. Pass the cables through the hole, place the board in the desired location and gently press it against the wall of the building.

Note: In case if you need to shorten the cables, further stripping of the cables is possible only with special stripping tool for cables with PTFE insulation like Rennsteig® 8007 5001 3 or Pro'sKit® 1PK-3001E.

Warnhinweis nach EU-Spielzeugrichtlinie 2009/48/EG:

ACHTUNG: Nicht geeignet für Kinder unter 14 Jahren.
Verletzungsgefahr und Erstickungsrisiko, wegen funktionsbedingter scharfer Ecken und Kanten, verschluckbarer Kleinteile.

Verantwortlich im Sinne der Produktsicherheitsverordnung (GPSR) ist:

HRT Informationstechnik GmbH, Kasseler Straße 7, DE-34431 Marsberg, Telefon: 0049 (0) 2994 / 9889 -60, E-Mail: info@hrt.de, Web: www.hrt.de
