Zmodell ZM-MS-032 - Double-sided delineator posts
25,00 €*
Sofort verfügbar, Lieferzeit: 1-3 Tage
Produktinformationen "Zmodell ZM-MS-032 - Double-sided delineator posts"
Zmodell ZM-MS-032 - Double-sided delineator posts

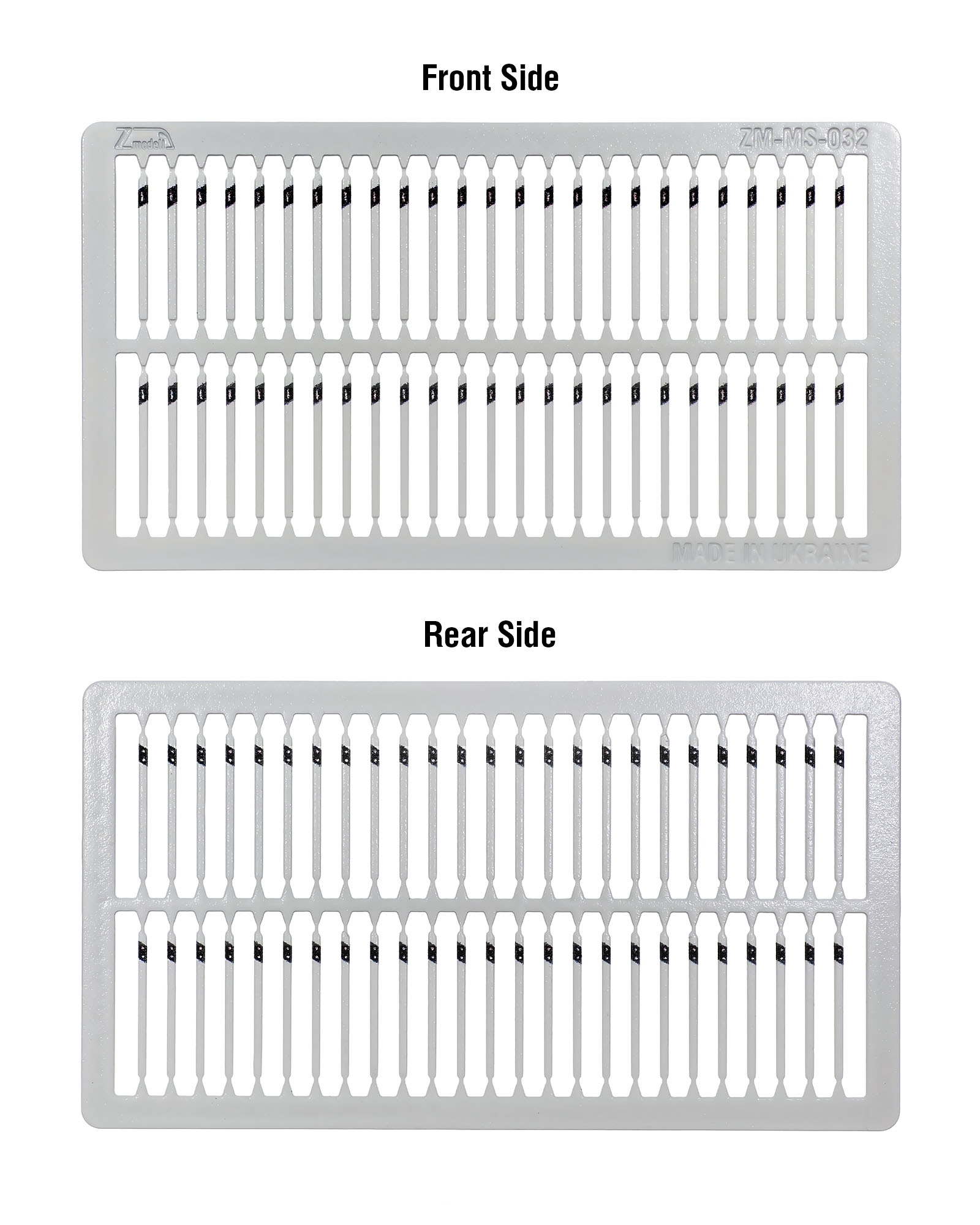

Material: 0.3 mm photo-etched nickel silver airbrushed with 3-layer lacquer paint and printed on both sides using UV-printing technology.

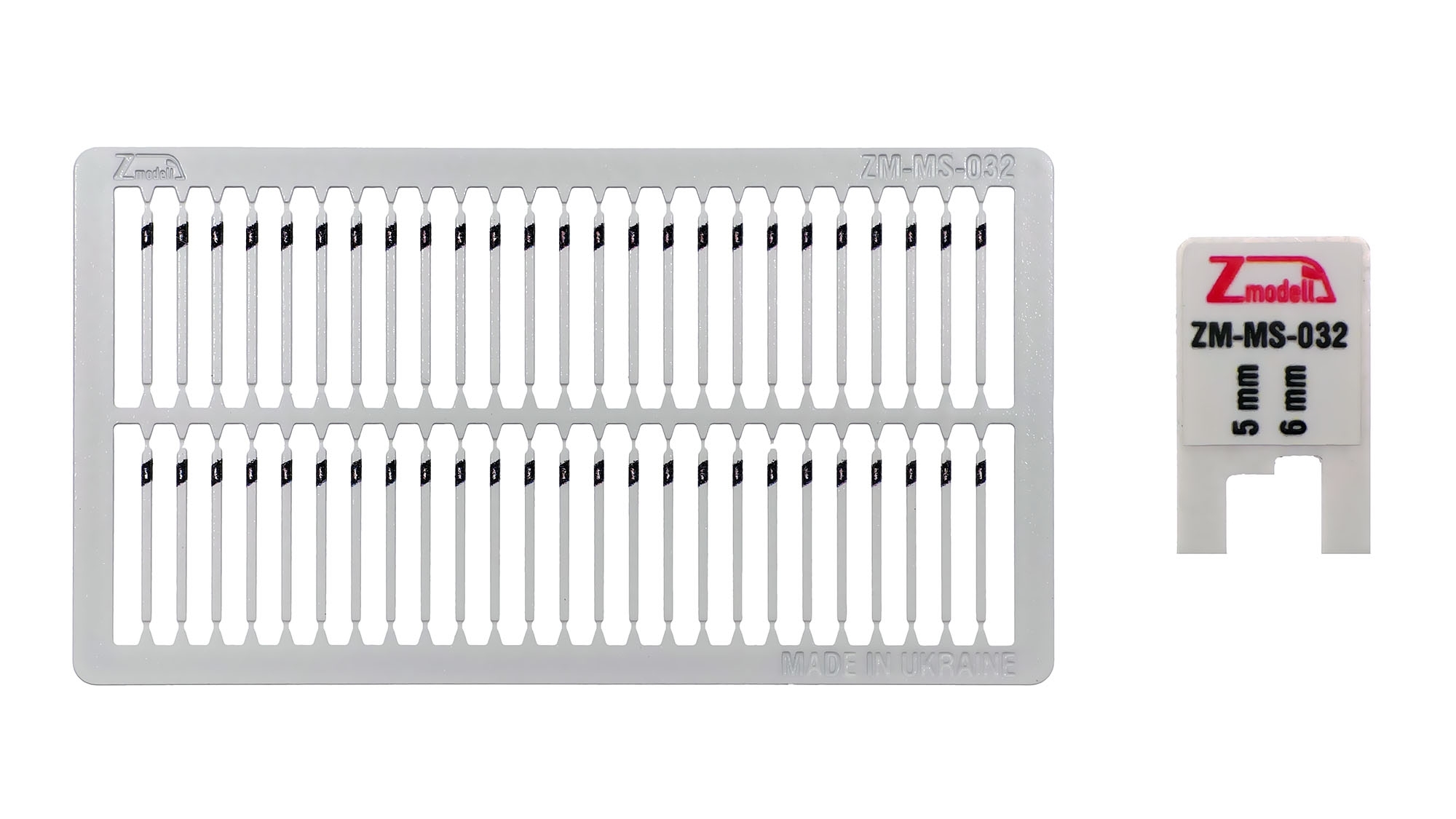

Quantity: 50x delineator posts, 1x mounting gauge
Size: 11 x 0.6 mm (Single post, total height x Width)
Country: Germany (StV0 signs 620-40 (front), 620-41 (rear)
Era: III-VI
Scale: Z scale 1:220
Suitable for: Z scale 1:220 layouts and dioramas
Installation:
1. Drill the hole in the surface of your layout using 0.8 mm drill bit.
2. Carefully cut out the traffic sign from the frame.
3. Wet the lower end of the delineator post with small drop of glue and insert it into the hole in the layout. Adjust the height of the post according to usage scenario using suppled gauge and wait until the glue dries completely.

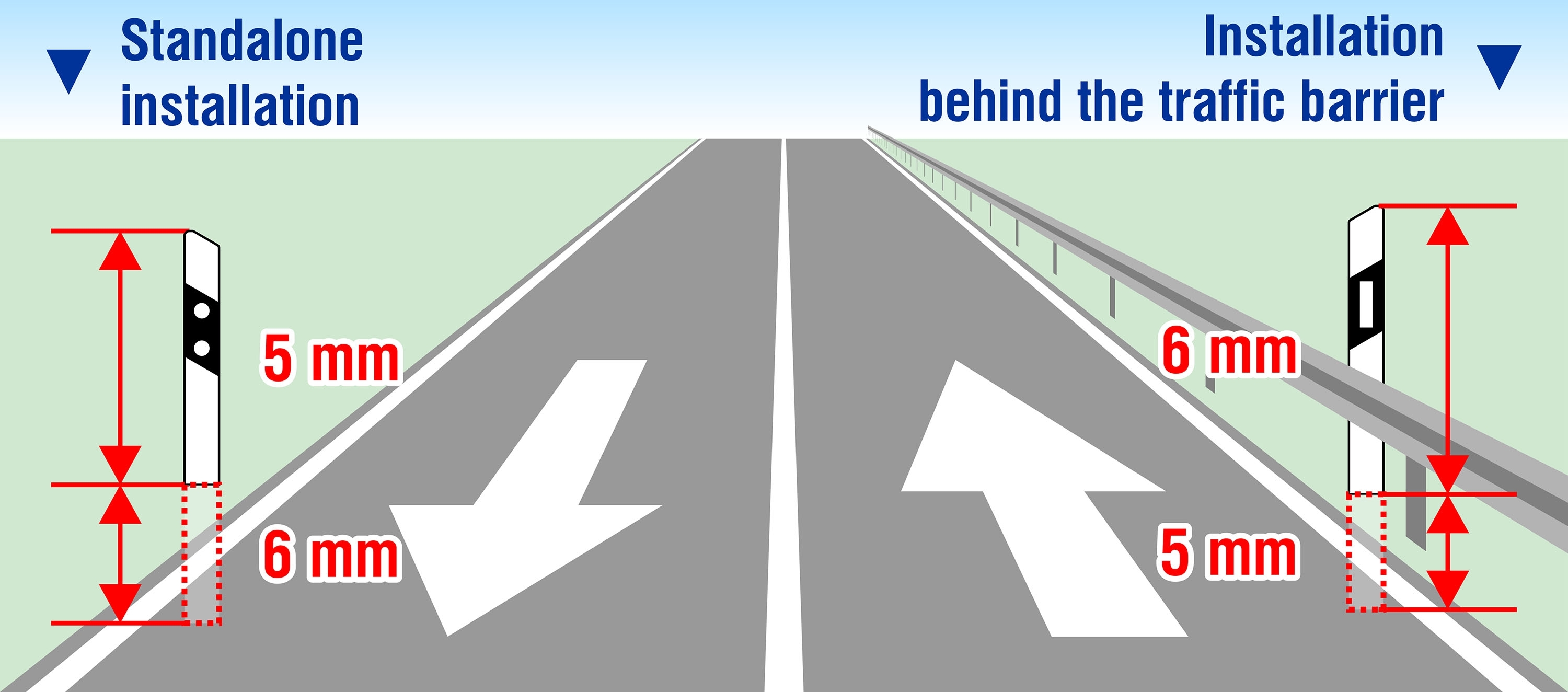

Information: The height of the delineator post must be 5 mm when installed standalone and 6 mm when installed behind the traffic barrier (Art. No. Zmodell ZM-MS-031).
Pay attention to the markings on the delineator posts: vertical dash must be installed on the right roadside, while two dots - on the left one.
Important: It is recommended to use lasercut glue (for example, Faller® Expert Lasercut Art. No. 170494); don’t use glues for plastic as they may damage the lacquer coating.
