Zmodell ZM-MS-030A - Guiding beacons, style 1

Zmodell ZM-MS-030A - Guiding beacons, style 1

Material:

Guiding beacons: 0.3 mm photo-etched nickel silver airbrushed with lacquer paint with separately attached plastic labels

Foot plates: High resolution SLA 3D printing

Scale: Z scale 1:220

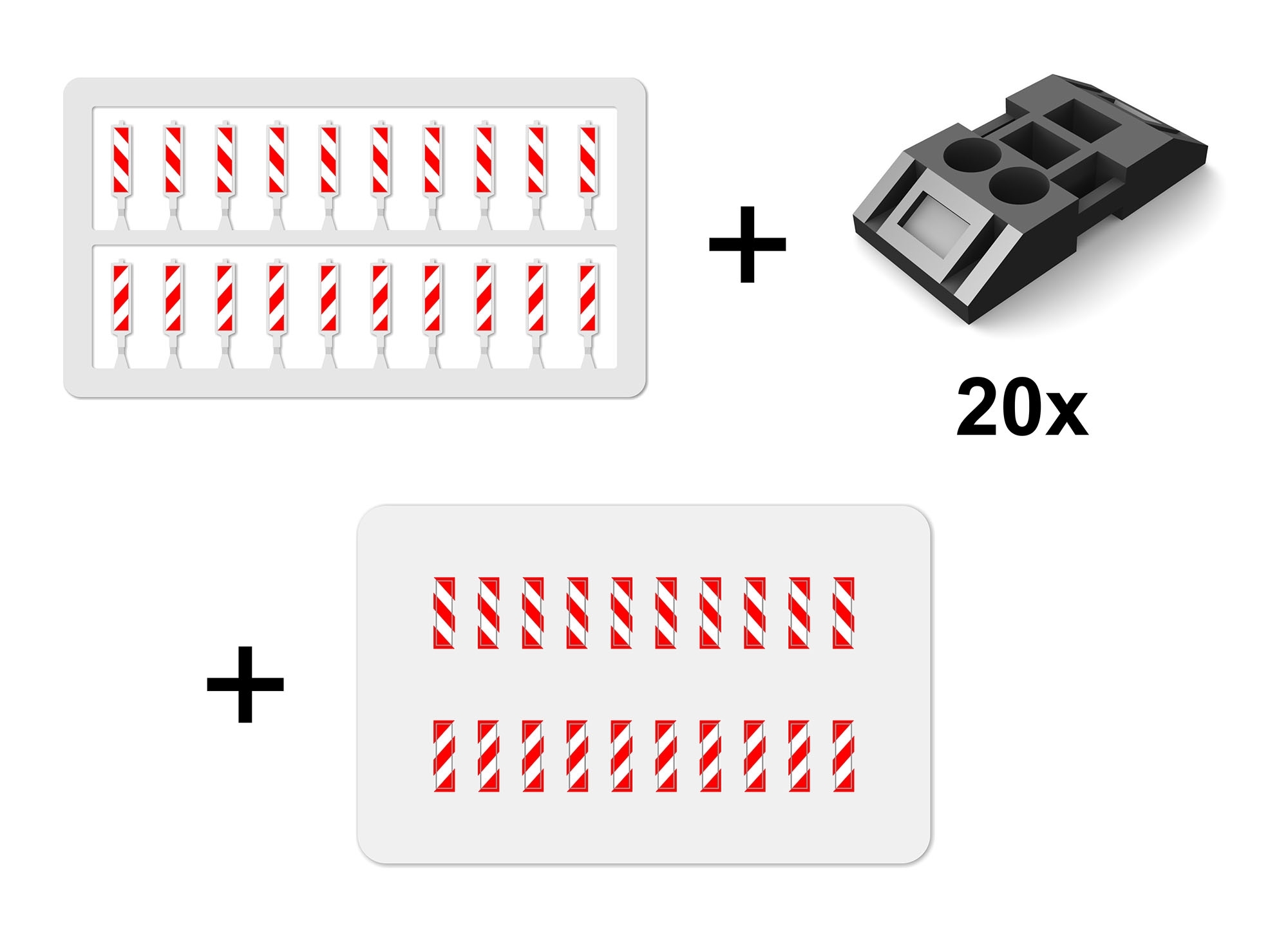

Quantity:

10x left guiding beacons

10x right guiding beacons

10x left additional stickers

10x right additional stickers

20x single foot plates

Size:

Guiding beacon (with leg): 6.2 x 1.4 mm (Height x Width)

Foot plate: 3.6 x 1.8 x 0.7 mm (Length x Width x Height)

Era: V-VI

Suitable for: Z scale 1:220 layouts and dioramas

Installation:

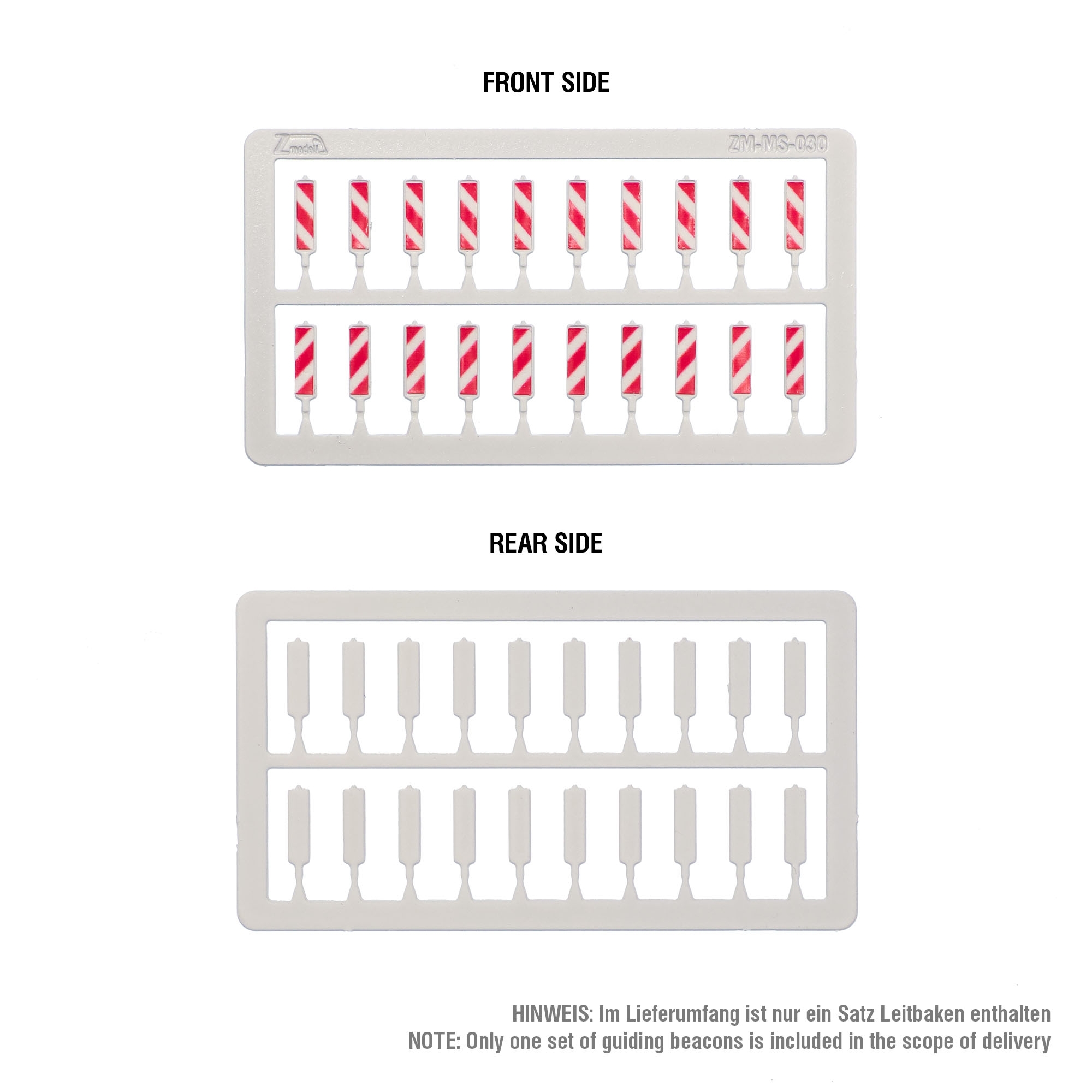

1. Carefully cut out the guiding beacons from the frame.

2. Place the foot plates on the layout and fix them in place with glue.

3. Wet the legs of guiding beacons with small drops of glue and insert them into the center square holes in the foot plates as shown on the picture above.

Important: It is recommended to use lasercut glue (for example, Faller® Expert Lasercut Art. No. 170494); don’t use glues for plastic as they may damage the lacquer coating.

Information: Spare single foot plates are available under the article number ZM-FP-001; please ask your dealer about availability

Tip: In some usage scenarios, it is possible to attach supplied labels to the back side of the guiding beacons and make them double-sided.

Warnhinweis nach EU-Spielzeugrichtlinie 2009/48/EG:

ACHTUNG: Nicht geeignet für Kinder unter 14 Jahren.
Verletzungsgefahr und Erstickungsrisiko, wegen funktionsbedingter scharfer Ecken und Kanten, verschluckbarer Kleinteile.

Verantwortlich im Sinne der Produktsicherheitsverordnung (GPSR) ist:

HRT Informationstechnik GmbH, Kasseler Straße 7, DE-34431 Marsberg, Telefon: 0049 (0) 2994 / 9889 -60, E-Mail: info@hrt.de, Web: www.hrt.de
