Zmodell ZM-LS-002L - Advertising Column in modern
20,00 €*
Sofort verfügbar, Lieferzeit: 1-3 Tage
Produktinformationen "Zmodell ZM-LS-002L - Advertising Column in modern"
Zmodell ZM-LS-002L - Advertising Column in modern style, Era IV-VI
Advertising Column in modern style, Era IV-VI

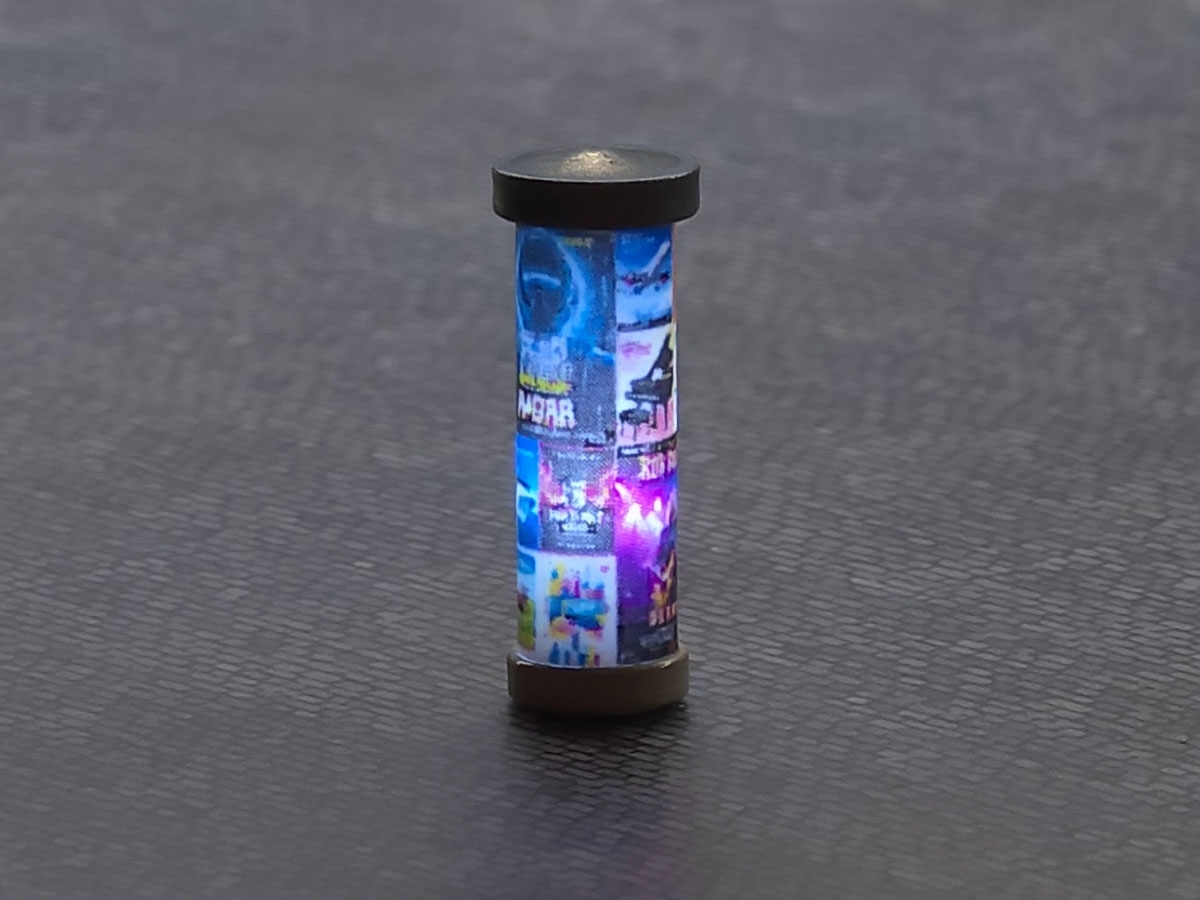

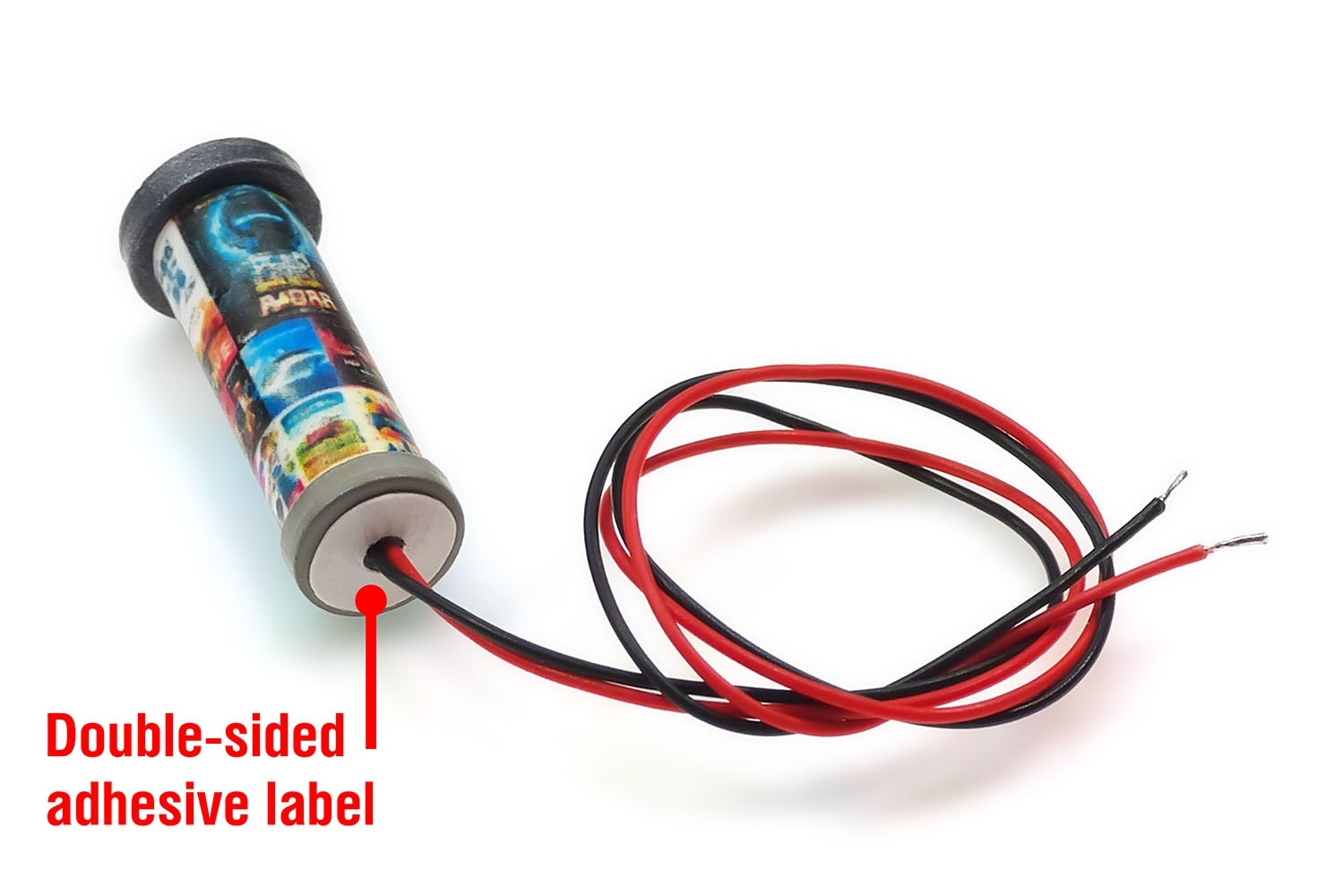

Finely detailed model of the advertising column is made of precisely processed polystyrene and 3D printed parts airbrushed with lacquer paint. The bottom is fitted with double-sided adhesive layer for easy installation on layouts. The column is equipped with white LED (already with resistor) that illuminates the posters from inside.
Scale: Z scale 1:220
Size: 20 x 7.2 mm (Height x Diameter)

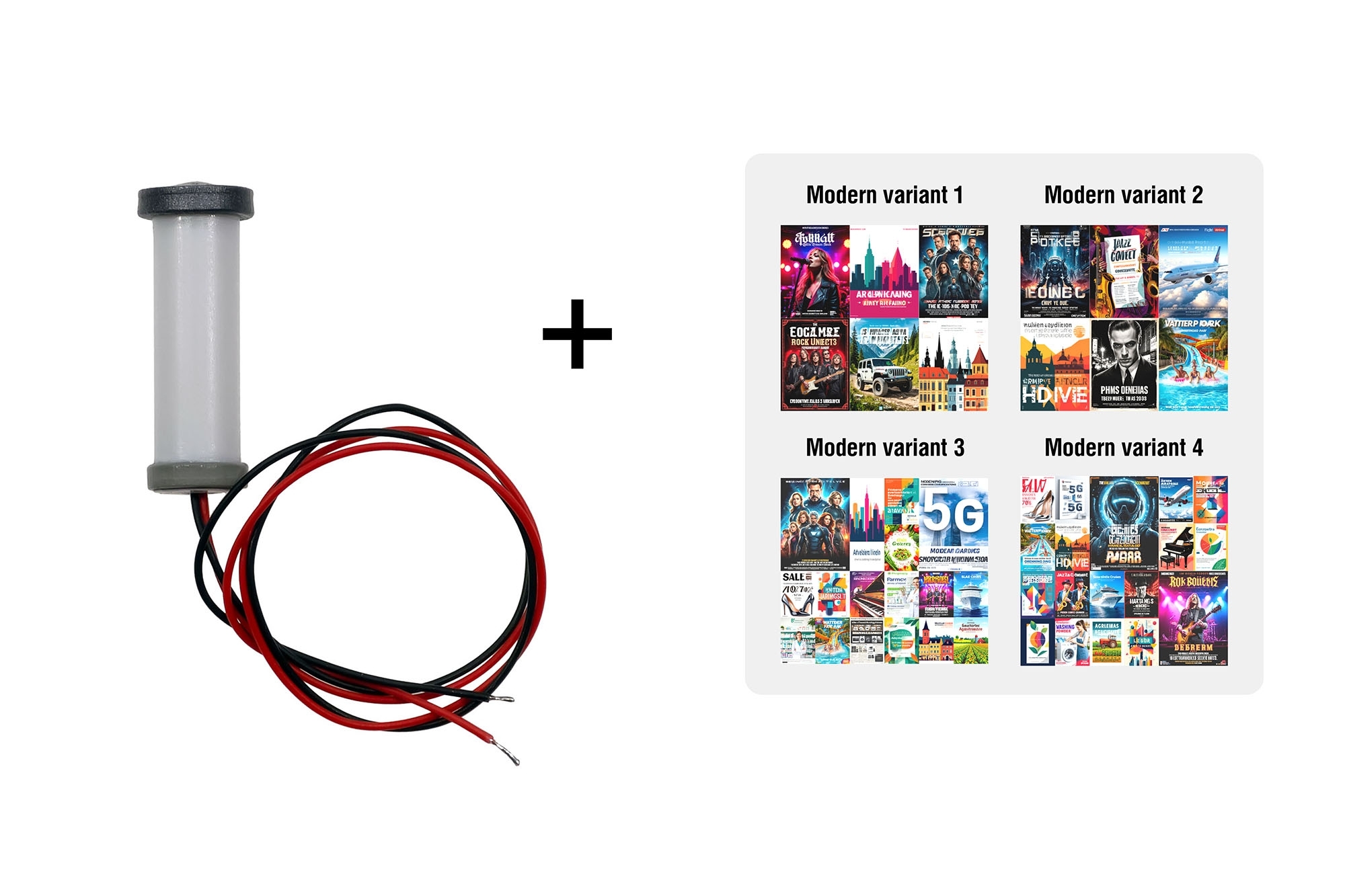

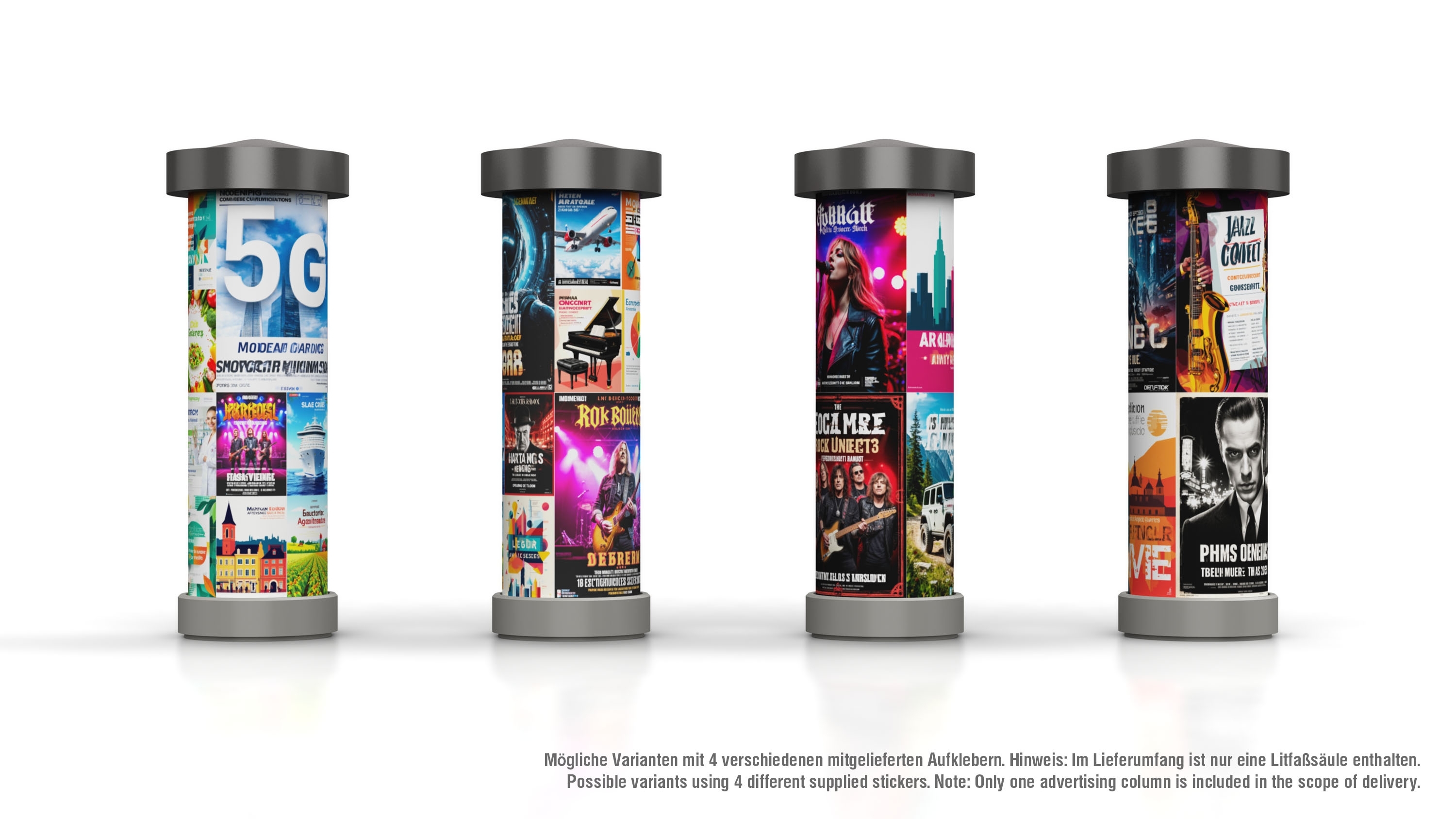

Quantity: 1 set (1x advertising column, 4x modern posters)
Era: IV-VI
Suitable for: Z scale 1:220 layouts and dioramas
Power: 8-16V DC (12V DC recommended)
Power consumption: 3 mA @ 12V DC
Cable length: 150 mm
Installation:
1. Attach desired poster to the advertising column.
2. Drill 1.5 mm hole in the surface on the layout
3. Carefully remove protective pad from the bottom of the advertising column
4. Thread the cables through the hole, affix the column on the surface and gently press on it to increase adhesive force.
5. Connect the cables to the DC power source.
Caution: Please do not connect the device to the AC power source or to the track output (analog or digital)
